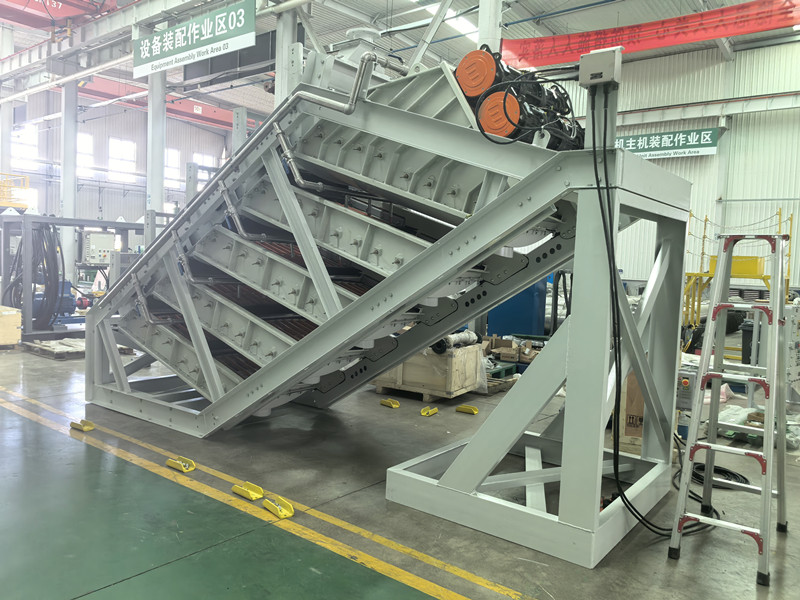

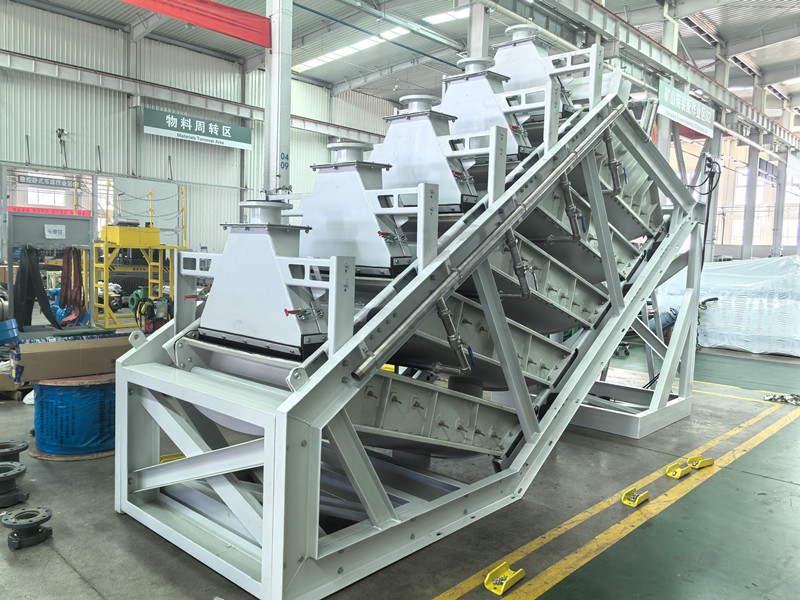

GN Separation is pleased to announce the delivery of a 5-deck Stack Vibrating Screen to an overseas customer, providing a compact and efficient screening solution for demanding solids processing applications.
For this overseas project, the 5-deck stack vibrating screens configuration integrates multiple screening stages into a single machine. By combining several screening decks within one unit, the equipment can provide a large effective screening area and accommodate multiple separation requirements while maintaining a relatively compact installation footprint.
Compared with conventional single- or multi-deck vibrating screens with similar installation constraints, the stacked configuration provides a higher screening capacity within a limited floor area. It is particularly suitable for applications where high throughput, multiple size separations and efficient use of installation space are required. The optimized vibration system also helps maintain stable material movement and efficient energy utilization during operation.
Polyurethane Screen Panels for Wear Resistance
Another important feature of the GN Stack Vibrating Screen is its use of polyurethane screen panels. Polyurethane combines good wear resistance with flexibility, making it suitable for applications involving abrasive materials. Its elastic characteristics can also help reduce material buildup and blinding under suitable operating conditions.
Depending on the screening requirements, two or three screen panels can be installed on each individual screen deck, allowing the screening surface to be configured according to the required separation size and process conditions. The panels are secured using pull-bolt fastening components, making screen replacement and routine maintenance relatively convenient while providing reliable fixation during operation.
Surface Protection for Demanding Environments
For overseas projects, equipment durability and adaptability to challenging operating environments are important considerations. GN applies professional sandblasting surface treatment followed by heavy-duty anti-corrosion coating to improve the corrosion resistance and surface durability of the equipment.
For surfaces directly exposed to processed materials, a polyurea resin wear- and corrosion-resistant coating can also be applied where required. This additional protective layer provides enhanced resistance to abrasion and corrosion, helping protect the equipment in demanding applications and extend its service life.
Reliable Vibration System
The vibration system can be equipped with internationally recognized vibration motors, including Martin or OLI motors, depending on the project requirements. These motors provide reliable vibration performance and are suitable for continuous industrial operation.
Combined with GN's robust structural design and straightforward maintenance requirements, the Stack Vibrating Screen is designed to provide stable and reliable performance in demanding solids processing applications.
Customized Screening Solutions for Overseas Customers
The delivery of this 5-deck Stack Vibrating Screen demonstrates GN Separation's capability to provide customized screening solutions for overseas customers. From equipment configuration and screening media selection to surface protection and overall mechanical design, GN considers the customer's material characteristics, required capacity, separation targets and site conditions when developing the screening solution.
With its compact multi-deck configuration, large effective screening area, flexible separation capability and robust construction, the GN Stack Vibrating Screen provides an effective solution for customers looking to improve screening performance while making efficient use of available installation space.
GN Separation continues to develop and supply professional solids separation equipment for customers worldwide, supporting a wide range of applications in mining, environmental treatment, industrial processing and other demanding industries.
